X2 - verricello verticale Nero

Main Features:

  • Special watertight stainless steel ball bearing in the base
  • With drum or low profile
  • Independent gypsy and drum operation
  • Rope and chain combinaton gypsy
  • Manual chain release
  • Manual override available
  • Rope chain management by the spring loaded arm
  • Chain counter magnet pre-installed as standard
  • IP67 motor cover
  • Marine anodised aluminium gearbox



Standard Equipment:

  • Dual direction solenoid pack
  • Handle
  • Gypsy for chain & rope
  • QR code card for Instruction Manual
Mettiti in contatto
Code Description Interruttore magnetotermico Barbotin per cima Barbotin per catena Velocità di recupero a carico (m/min) Velocità Max. di recupero Tiro Massimo Istantaneo Tipo di motore Tensione Tipo Peso netto Assorbimento di corrente (A) Carico di lavoro Massimo al sollevamento
[] VERRICELLO V. X2 NERO 1000W/12V 8-5/16BBB-5/16HT image
VERRICELLO V. X2 NERO 1000W/12V 8-5/16BBB-5/16HT 187333 14 mm, 3-strand 8 mm, ISO 4565 DIN 766 20 m/min 40 m/min 1000 kg 1000 W 12 V Low Profile 19 kg 117 150 kg
[] VERRICELLO V. X2 NERO G+D 1000W/12V 8-5/16BBB-5/16HT image
VERRICELLO V. X2 NERO G+D 1000W/12V 8-5/16BBB-5/16HT 187333 14 mm, 3-strand 8 mm, ISO 4565 DIN 766 20 m/min 40 m/min 1000 kg 1000 W 12 V With Drum 20 kg 117 150 kg
[] VERRICELLO V. X2 NERO 1000W/12V 10 3/8 HT image
VERRICELLO V. X2 NERO 1000W/12V 10 3/8 HT 187333 - 10 mm, ISO 4565 20 m/min 40 m/min 1000 kg 1000 W 12 V Low Profile 19 kg 117 150 kg
[] VERRICELLO V. X2 NERO G+D 1000W/12V 10 3/8 HT image
VERRICELLO V. X2 NERO G+D 1000W/12V 10 3/8 HT 187333 - 10 mm, ISO 4565 20 m/min 40 m/min 1000 kg 1000 W 12 V With Drum 20 kg 117 150 kg
[] VERRICELLO V. X2 NERO 1000W/12V 10DIN766 image
VERRICELLO V. X2 NERO 1000W/12V 10DIN766 187333 - 10 mm, DIN 766 20 m/min 40 m/min 1000 kg 1000 W 12 V Low Profile 19 kg 117 150 kg
[] VERRICELLO V. X2 NERO G+D 1000W/12V 10DIN766 image
VERRICELLO V. X2 NERO G+D 1000W/12V 10DIN766 187333 - 10 mm, DIN 766 20 m/min 40 m/min 1000 kg 1000 W 12 V With Drum 20 kg 117 150 kg
636845 VERRICELLO V. X2 NERO 1000W/24V 8-5/16BBB-5/16HT 187332 14 mm, 3-strand 8 mm, ISO 4565/ DIN 766 23 m/min 40 m/min 1060 kg 1000 W 24 V Low Profile 23 kg 59 160 kg
636846 VERRICELLO V. X2 NERO G+D 1000W/24V 8-5/16BBB-5/16HT 187332 14 mm, 3-strand 8 mm, ISO 4565/ DIN 766 23 m/min 40 m/min 1060 kg 1000 W 24 V With Drum 24 kg 59 160 kg
Product Brochure

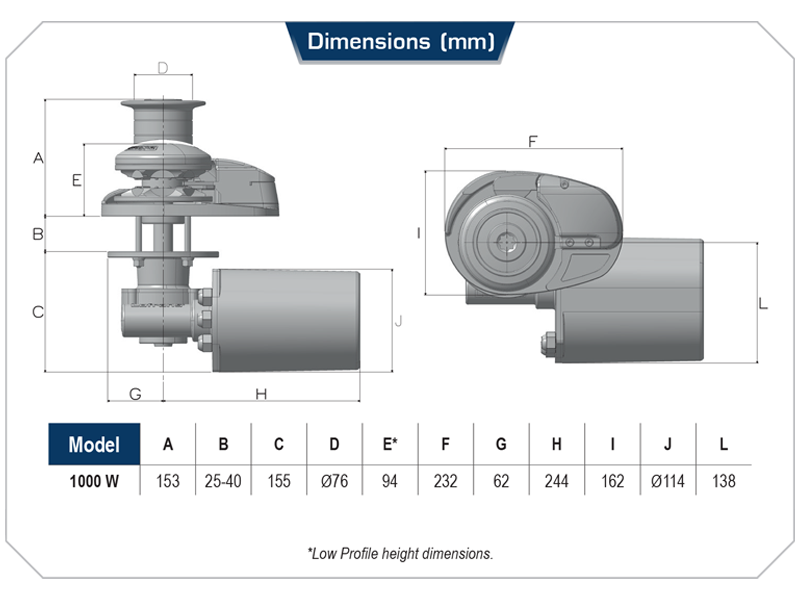

X2 dimensions new
