X1 - verricello verticale Nero

Main Features

With drum or low profile
Independent gypsy and drum operation
Rope and chain combination gypsy
Manual chain release
Chain & rope management by the spring loaded arm
Chain counter magnet pre-installed as standard
IP67 motor cover
Marine anodised aluminium gearbox

Standard Equipment

Dual direction solenoid pack
Handle
Gypsy for chain & rope
QR code card for Instruction Manual

Mettiti in contatto

Code	Description	Barbotin per catena	Barbotin per cima	Velocità di recupero a carico (m/min)	Velocità Max. di recupero	Tiro Massimo Istantaneo	Tipo di motore	Peso netto	Tensione	Carico di lavoro Massimo al sollevamento	Tipo	Assorbimento di corrente (A)
	VERRICELLO V. X1 NERO 500W/12V 6-3/16BBB	6 mm, ISO 4565 DIN 766	10-12 mm, 3-strand	23 m/min	26 m/min	630 kg	500 W	10 kg	12 V	95 kg	Low Profile	60
	VERRICELLO V. X1 NERO 800W/12V 8-5/16BBB-5/16HT	8 mm, ISO 4565 DIN 766	12 mm, 3-strand	25 m/min	28 m/min	700 kg	800 W	13 kg	12 V	100 kg	Low Profile	110
	VERRICELLO V. X1 NERO 800W/12V 6-3/16BBB	6 mm, ISO 4565 DIN 766	10-12 mm, 3-strand	25 m/min	28 m/min	700 kg	800 W	13 kg	12 V	100 kg	Low Profile	110
	VERRICELLO V. X1 NERO 500W/12V 8-5/16BBB-5/16HT	8 mm, ISO 4565/ DIN 766	12 mm, 3-strand	23 m/min	26 m/min	630 kg	500 W	10 kg	12 V	95 kg	Low Profile	60
	VERRICELLO V. X1 NERO 1000W/12V 8-5/16BBB-5/16HT	8 mm, ISO 4565/ DIN 766	12 mm, 3-strand	18 m/min	30 m/min	900 kg	1000 W	16 kg	12 V	125 kg	Low Profile	125
	VERRICELLO V. X1 NERO G+D 800W/12V 8-5/16BBB-5/16HT	8 mm, ISO 4565/ DIN 766	12 mm, 3-strand	25 m/min	28 m/min	700 kg	800 W	14 kg	12 V	100 kg	With Drum	110

Manuali

Manuale di installazione ed uso X1 - X1 ALU - X1 Dark Version

Product Brochure

LOFRANS_X1_X2_Dark_Product Announcement

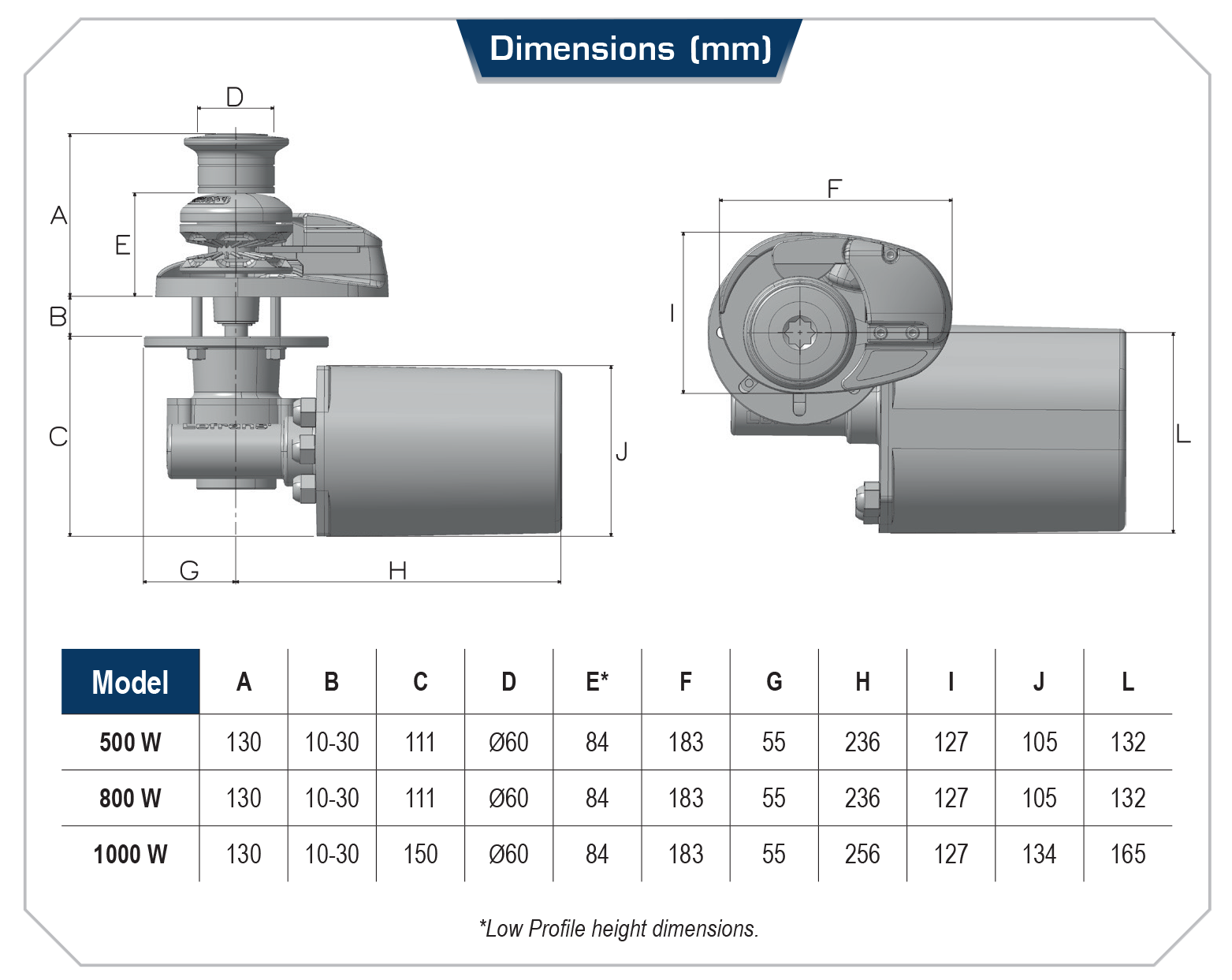

X1 updated dimensions
