SX1-verricello verticale

Invia Ordine

[11857] Maniglia per verricello Lofrans', alluminio anodizzato, con fermo e impugnatura speciale, 20 cm, ner

[72907] Lofrans, maniglia winch galleggiante, senza fermo - 25cm

[474053] KIT S SENSORE&MAGNETE X1/X2/X3

[601330] KIT PRIGIONIERO M8X58 #225A

[630680] ALBERO X1 #1045A

[630839] Anello DIN 17224 #208, Materiale: X12CrNi177, d=16,5mm, width=2 mm

[630970] BARBOTIN 5 IMPRONTE PER X1 #206B

[630980] BARBOTIN 6 IMPRONTE PER X1 #206C

[630999] BARBOTIN 5 IMPRONTE PER X1 #206D

[636352] COPRIBARBOTIN SX1 #2011

[630970] BARBOTIN 5 IMPRONTE PER X1 #206B

[630980] BARBOTIN 6 IMPRONTE PER X1 #206C

[630999] BARBOTIN 5 IMPRONTE PER X1 #206D

[631307] BUSSOLA X1 #216

[631828] DISCO FRIZIONE X1 #1049

[631829] DISCO FRIZIONE X1 #1048

[631992] Riduttore A1 flangia ovale IP67 (assemblato interno) #1226

[633520] MOTORE CC X1 2011 #1231 12V 0,5KW B14''

[636050] MOTORE CC X1-X2 2016 #1231B 12V 0,8KW B14'

[634830] Rondella X1 #1047

[636353] STACCACATENA SX1 #2012

[72037] KIT MANUTENZIONE X1

Main features:

Compact round base design
Marine AISI 316L stainless steel construction
Independent gypsy operation
Manual chain release
Chain counter magnet pre-installed as standard
IP67 motor cover
Anodised marine aluminium gearbox
Chain pipe available as an option

Standard Equipment:

Dual direction solenoid pack
Handle
Gypsy for chain
CD / Instruction manual
Chain pipe also available as an option, code 636431

Mettiti in contatto

Description	Tipo di motore	Tensione	Tiro Massimo Istantaneo	Assorbimento di corrente (A)	Velocità di recupero a carico (m/min)	Velocità Max. di recupero	Peso netto modello a basso profilo (kg)	Interruttore magnetotermico	Tipo	Barbotin per catena	Carico di lavoro Massimo (A)
VERRICELLO V. SX1 INOX BASE TONDA 500W/12V 6-3/16"BBB	500W	12	630	95	23	26	11	636087	Low Profile	6 mm, ISO 4565/ DIN 766	75
VERRICELLO V. SX1 INOX BASE TONDA 800W/12V 8-5/16"BBB-5/16"HT	800W	12	700	100	25	28	13	636088	Low Profile	8 mm, ISO 4565/ DIN 766	80
VERRICELLO V. SX1 INOX BASE TONDA 800W/12V 6-3/16"BBB	800W	12	700	100	25	28	13	-	Low Profile	6 mm, ISO 4565/ DIN 766	80

The "SX" vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. They have different motorization attributes according to each model.

The standard features that you can meet in every SX series windlass are:

Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.
There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
Compact round base design constructed with Marine AISI 316L Stainless Steel

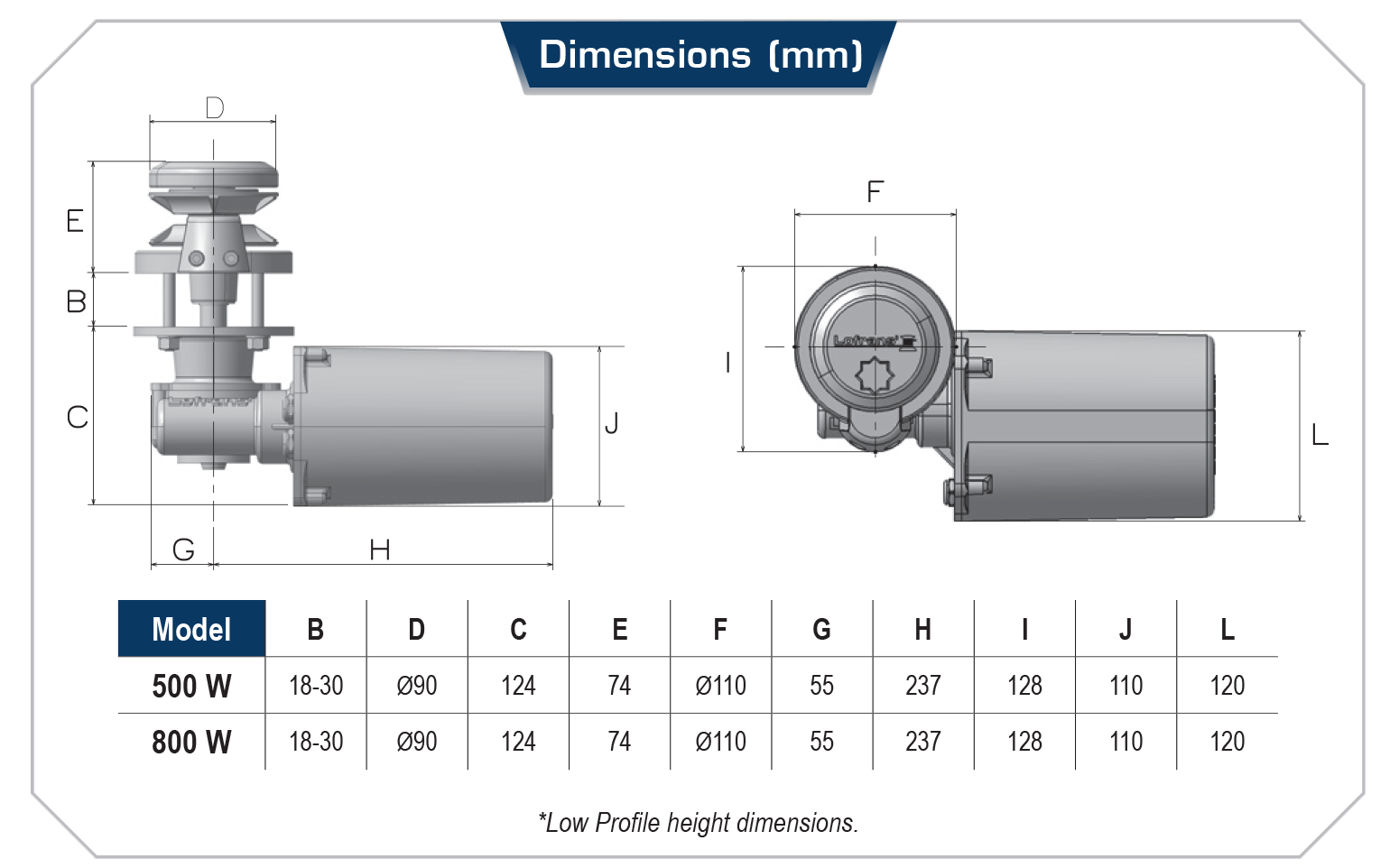

Windlass Models / Technical Information

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.

Informazioni Tecniche
